VBS output - BNC (2) 1.0 Vp-p, 75 ½

R/G/B output - BNC (1) 0.7 Vp-p, 75 ½

Y/R-Y/B-Y output - BNC (1), Y: 1.0 Vp-p, 75 ½, R-Y/B-Y: 0.525 Vp-p, 75 ½

Y/C output - BNC (1) Y: 1.0 Vp-p, 75 ½, C: 0.3 Vp-p, 75 ½

SYNC output - BNC (1), 0.3 Vp-p, 75 ½

SDI output - BNC (2), 270 Mb/s, 0.8 Vp-p, 75 ½

S-Video output - DIN 4-pin (1), Y: 1.0 Vp-p, 75 ½, C: 0.3 Vp-p, 75 ½

Monitor output - BNC (1) VBS:1.0Vp-p, 75½

Mic output - XLR 3-pin (1), 600½

Genlock input - BNC (1), loop-through, VBS or BBS, 1.0 Vp-p, 75½

SDI input - BNC (1), 270 Mb/s, 0.8 Vp-p, 75 ½

Return Video input - BNC (1), loop-through, 1.0 Vp-p, 75 ½

Prompter Video input - BNC (1), loop-through, 1.0 Vp-p, 75 ½

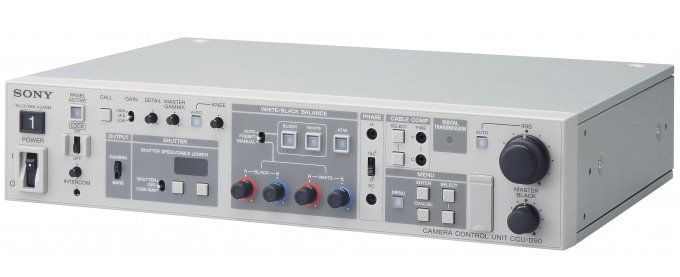

Camera - Sony Z-type 26-pin (1)

Intercom/Tally - D-sub 15-pin, 4W/2W selectable, R/G Tally, contact

Remote - 10-pin (1)
